Chad-O-Chef Double-Sided Universal Grate Fireplace

Description

Upgrade Your Fireplace to Effortless Comfort with the Chad-O-Chef Double Sided Universal Grate

The Chad-O-Chef Double-Sided Universal Grate is the perfect solution to transform your existing wood-burning fireplace into a tidy and convenient gas fireplace while maintaining the classic look and feel of a traditional fireplace with a modern twist.

Different finishing options available for this fireplace:

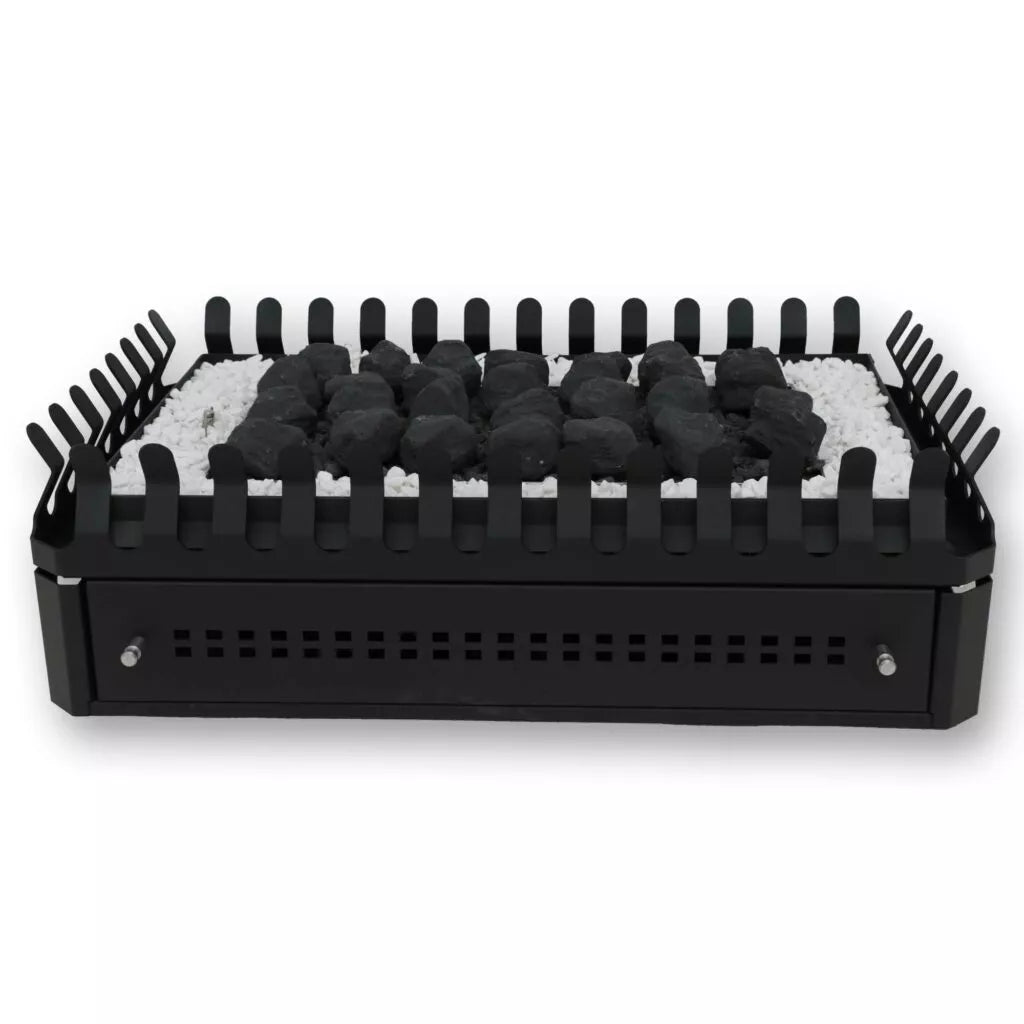

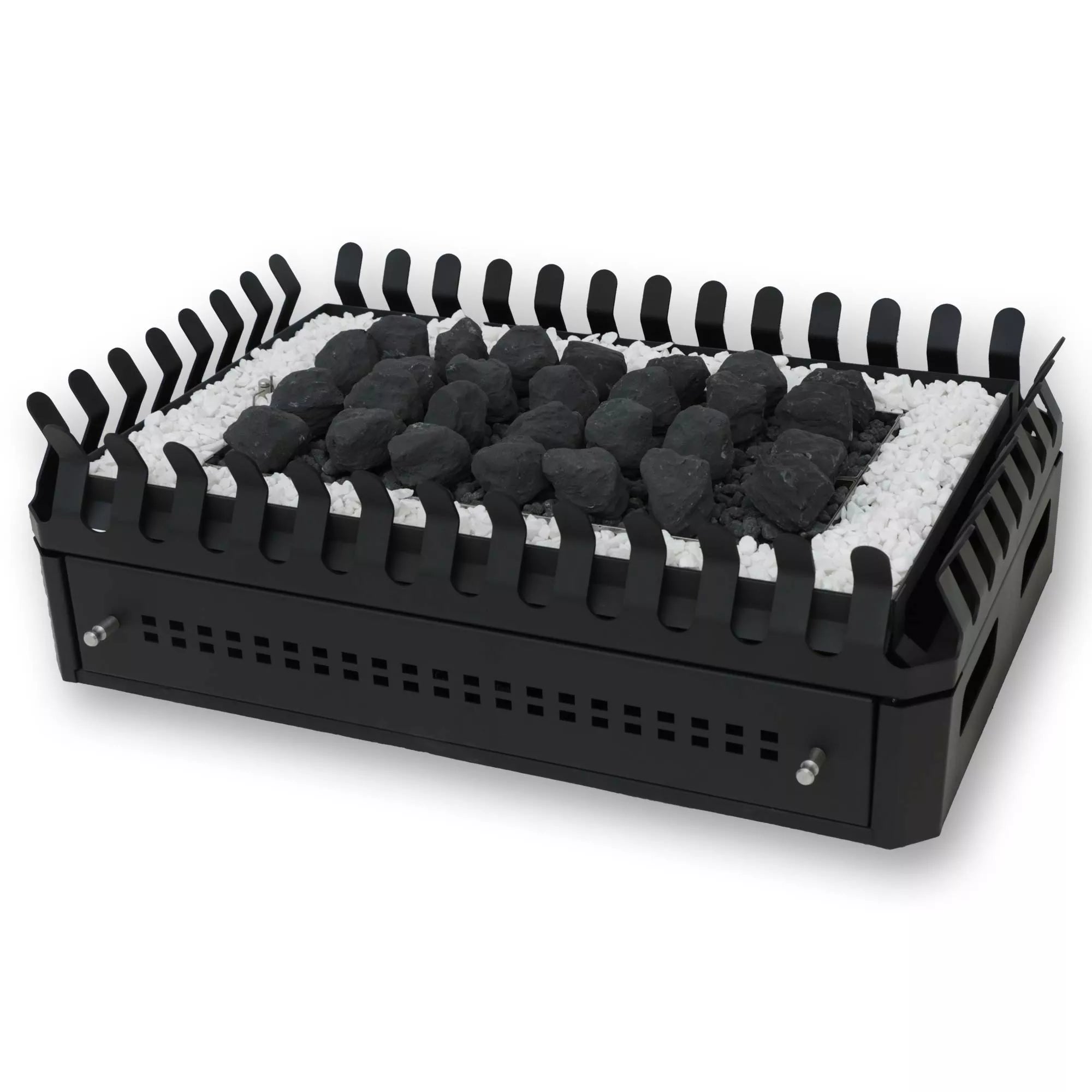

• Decorative Stones: Standard stone options include Black Ceramic Ash with Black Ceramic Coals in the burner, and a White Stone surround. Fire Glass is also available as an alternative.

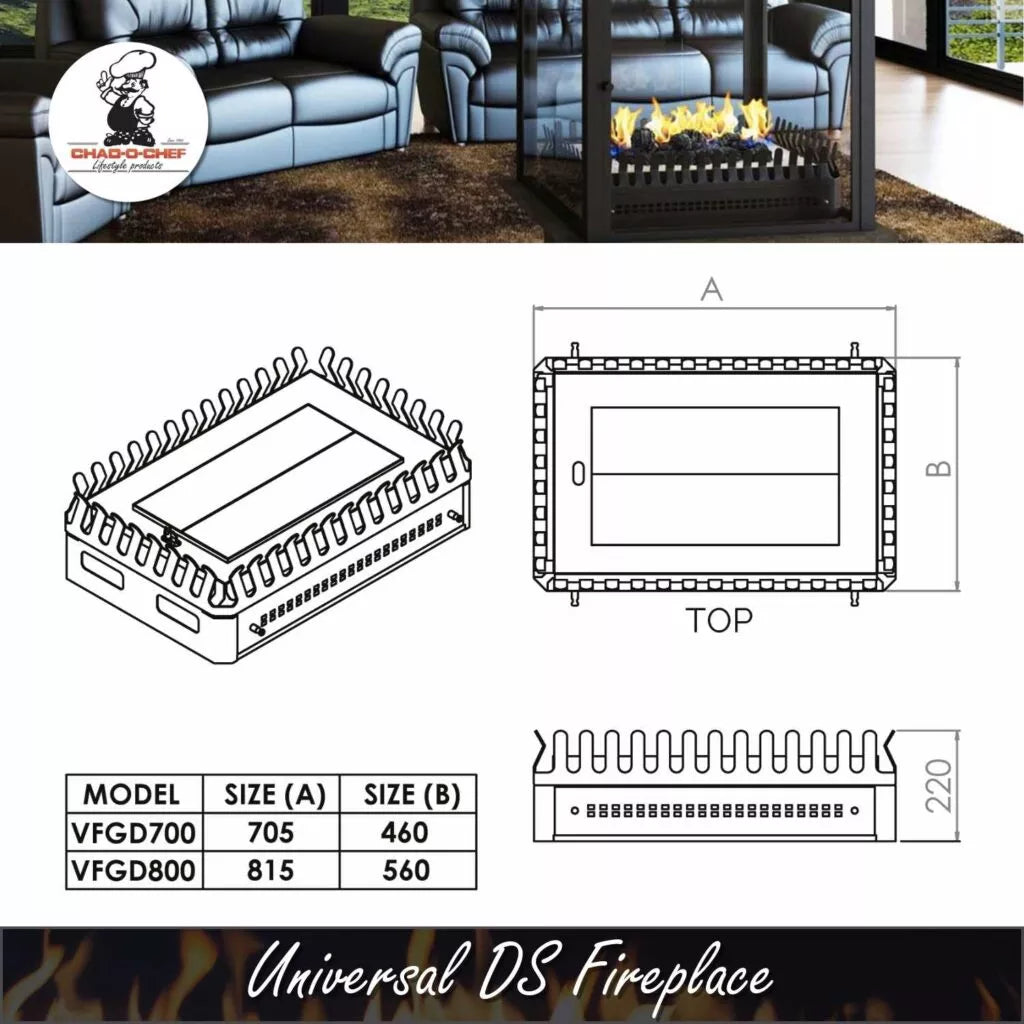

• Size: Available in 2 different sizes.
  (VFDG700: 10.7 kWh) & (VFDG800: 10.7 kWh)

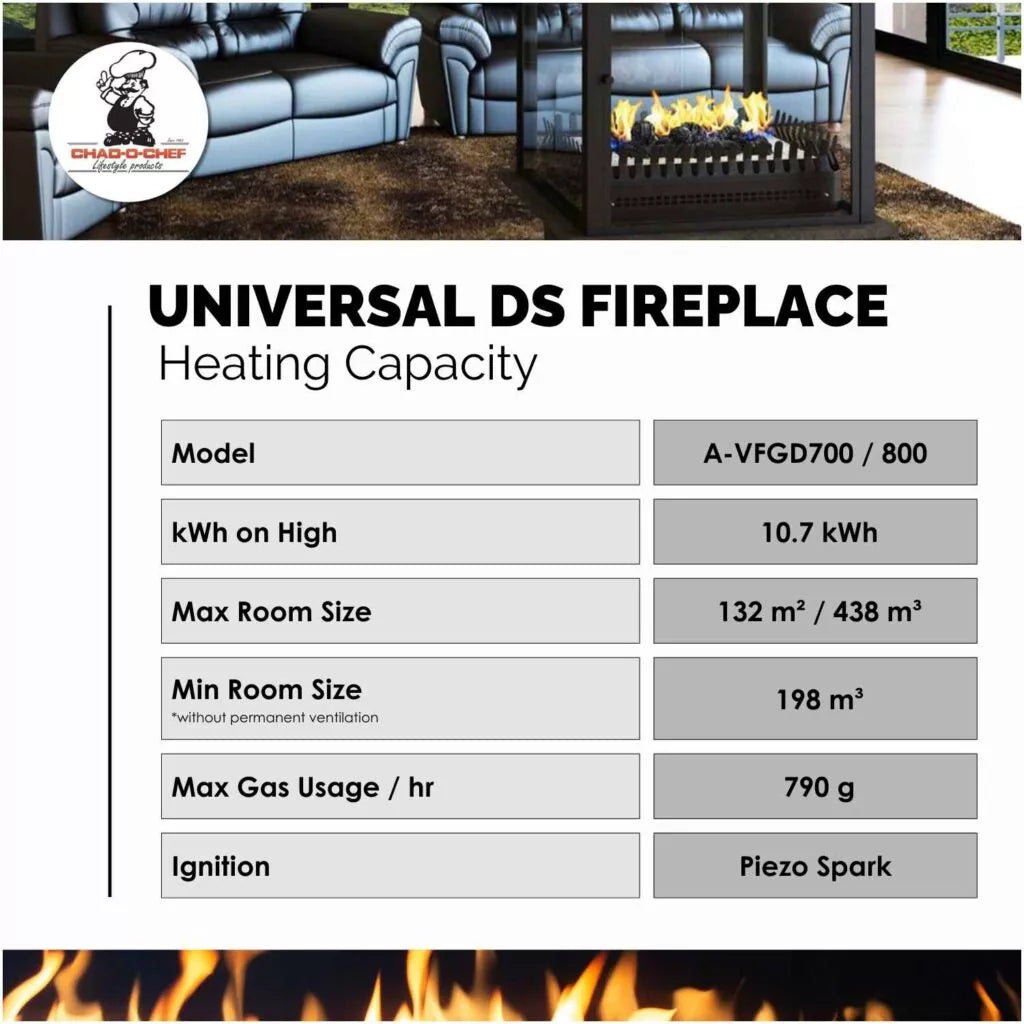

Key features of the Chad-O-Chef Double-Sided Universal Grate:

• Retrofit into an existing fireplace, or build your housing design.
• Heats up indoor areas of up to 132m² or 438m³ (10.7 kWh).
• The minimum room size (without permanent ventilation) should not be less than 198m³.
• Conservative Gas Consumption (when operating on max) is 0.79 kg/h.
• Made of high-quality stainless steel and black-painted mild steel.
• Safety Guaranteed with ODS Safety System
• 2-Year quality guarantee.
• Low maintenance and easy to use.
• Requires a registered gas installer for installation.
• Ignites with a Piezo Spark.
• Manufactured in a world-class factory with ISO9001

Installation Instructions

The Universal Grate Double-Sided Fireplace is designed to easily retrofit into an existing traditional double-sided wood-burning fireplace. There is ample room for your gas installer to lead the gas pipe in from underneath the fireplace.
The Universal Grate Double Sided is a Flueless Fireplace, so any existing chimney needs to be closed off to keep heat inside the home

Note:
– Rooms smaller than the ‘Min. Room size’ requires suitable permanent ventilation.
– ‘Max. Room sizes’ are recommended and may vary according to factors such as home insulation, materials, climate, and so forth.

What’s in the box?

• Fireplace Grate
• Burner
• Decorative Stones
• Instruction Manual
