Chad-o-Chef Flameline 1210 Fireplace

Indoor Flueless Gas Fireplace
Heat medium to large open spaces going up to 489mᶟ in style. The minimalist, all-stainless-steel form factor exudes a touch of avant-garde style, complementing any modern décor. Available in three sizes, offering different heating capacities.

Different finishing options available for this fireplace:

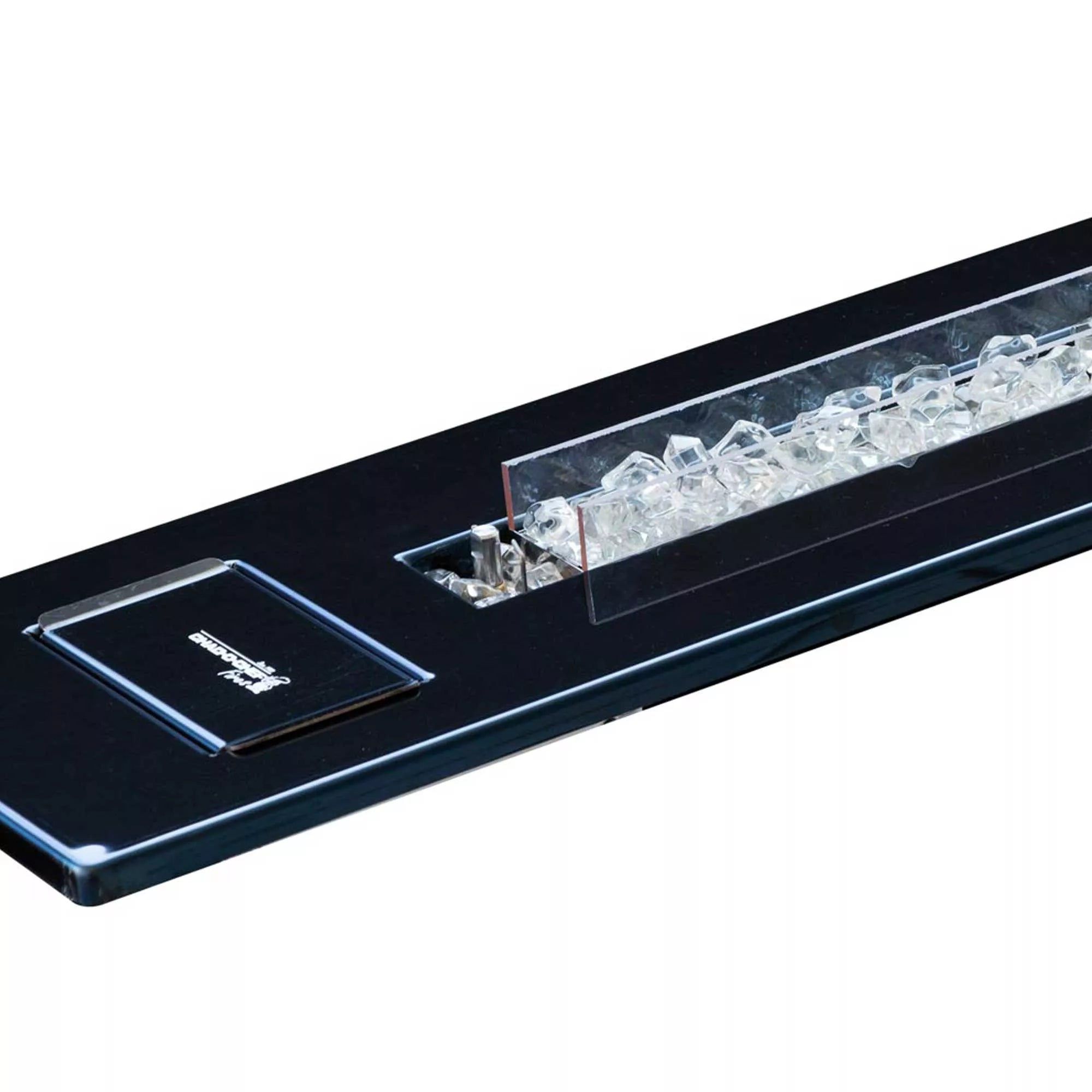

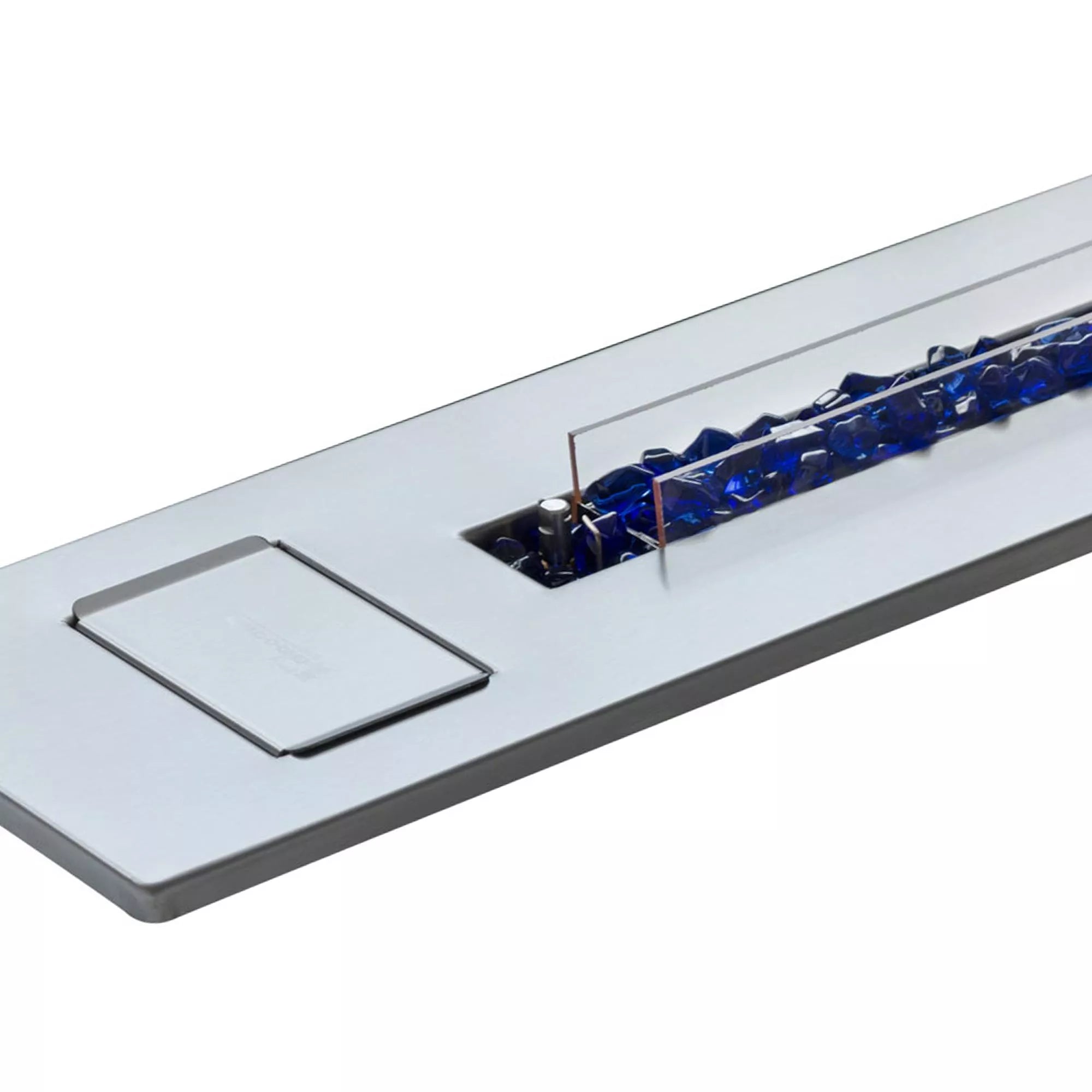

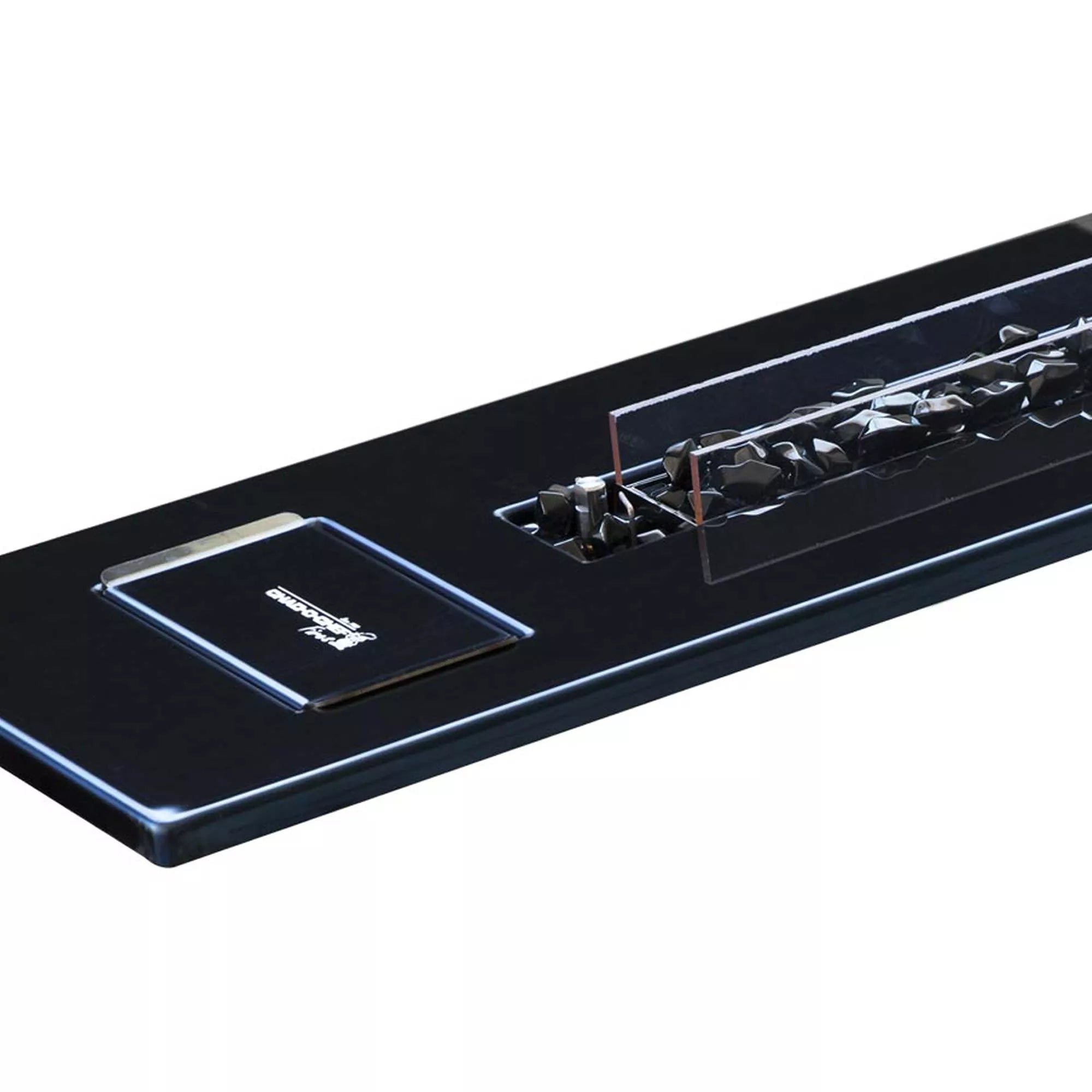

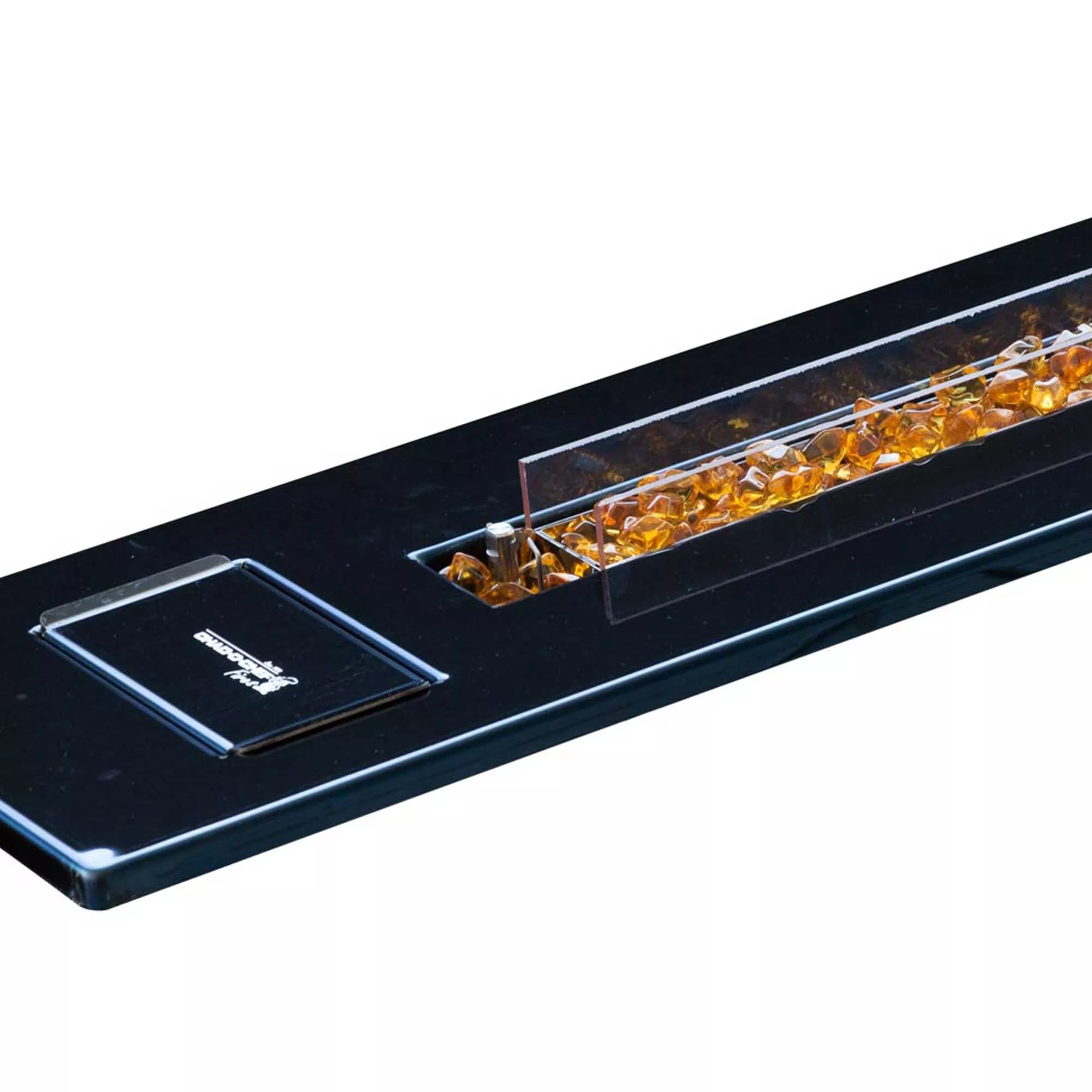

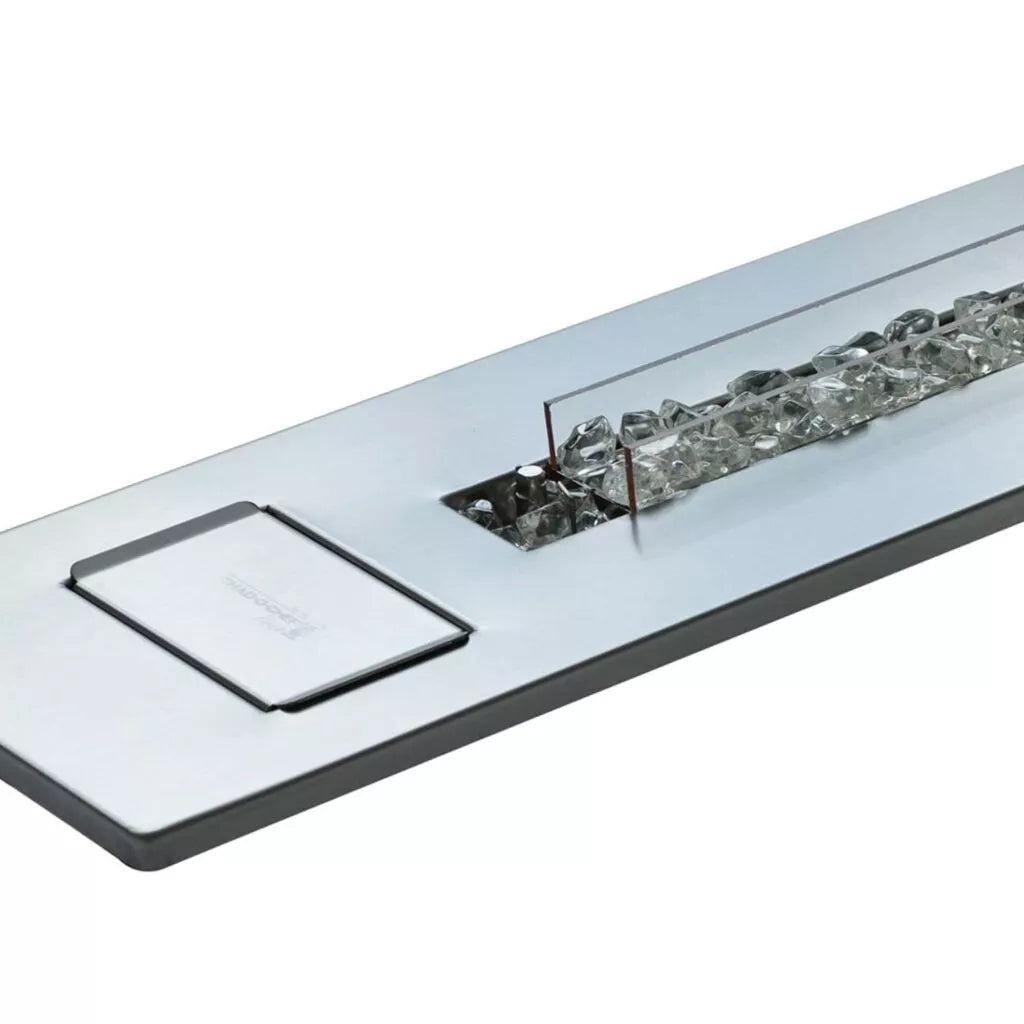

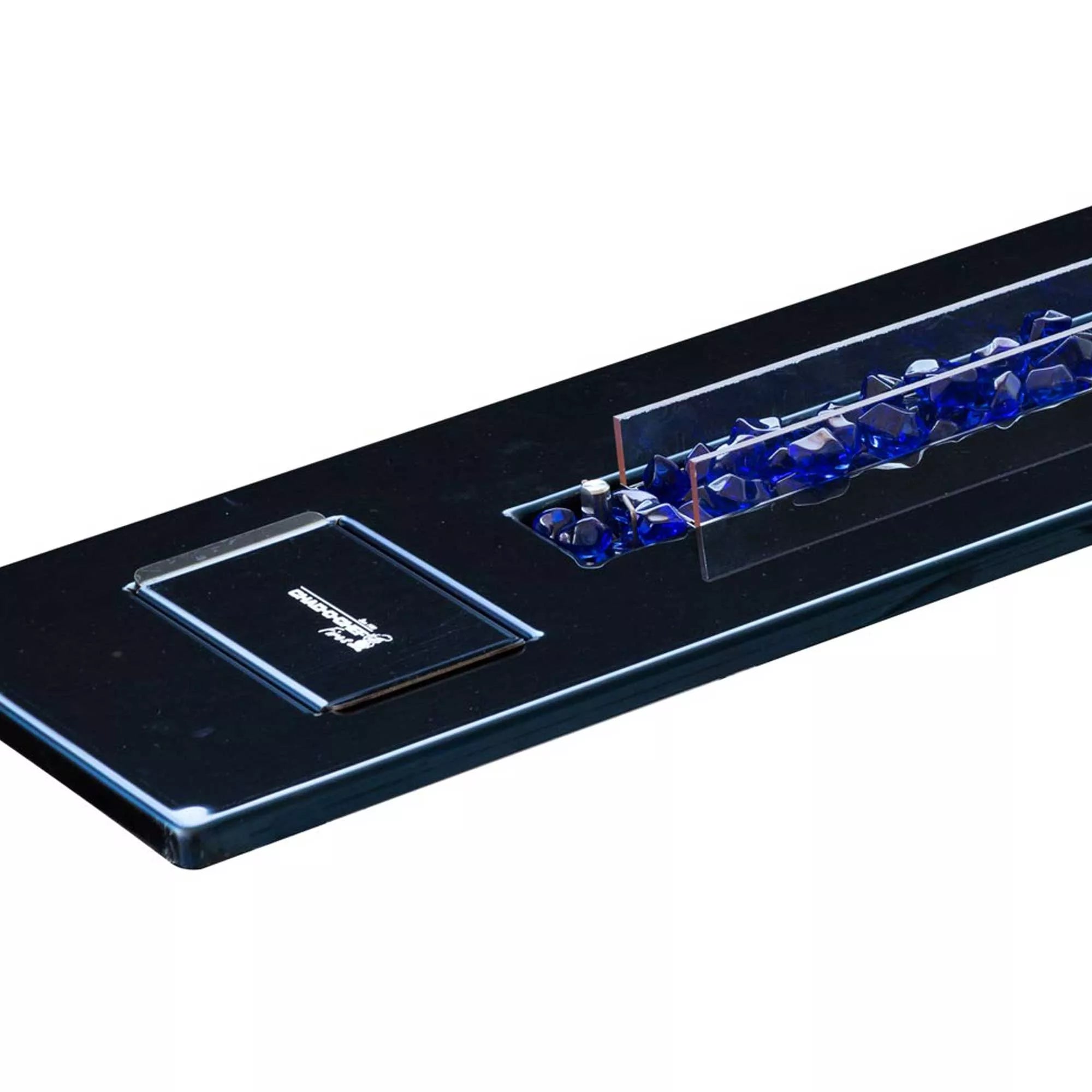

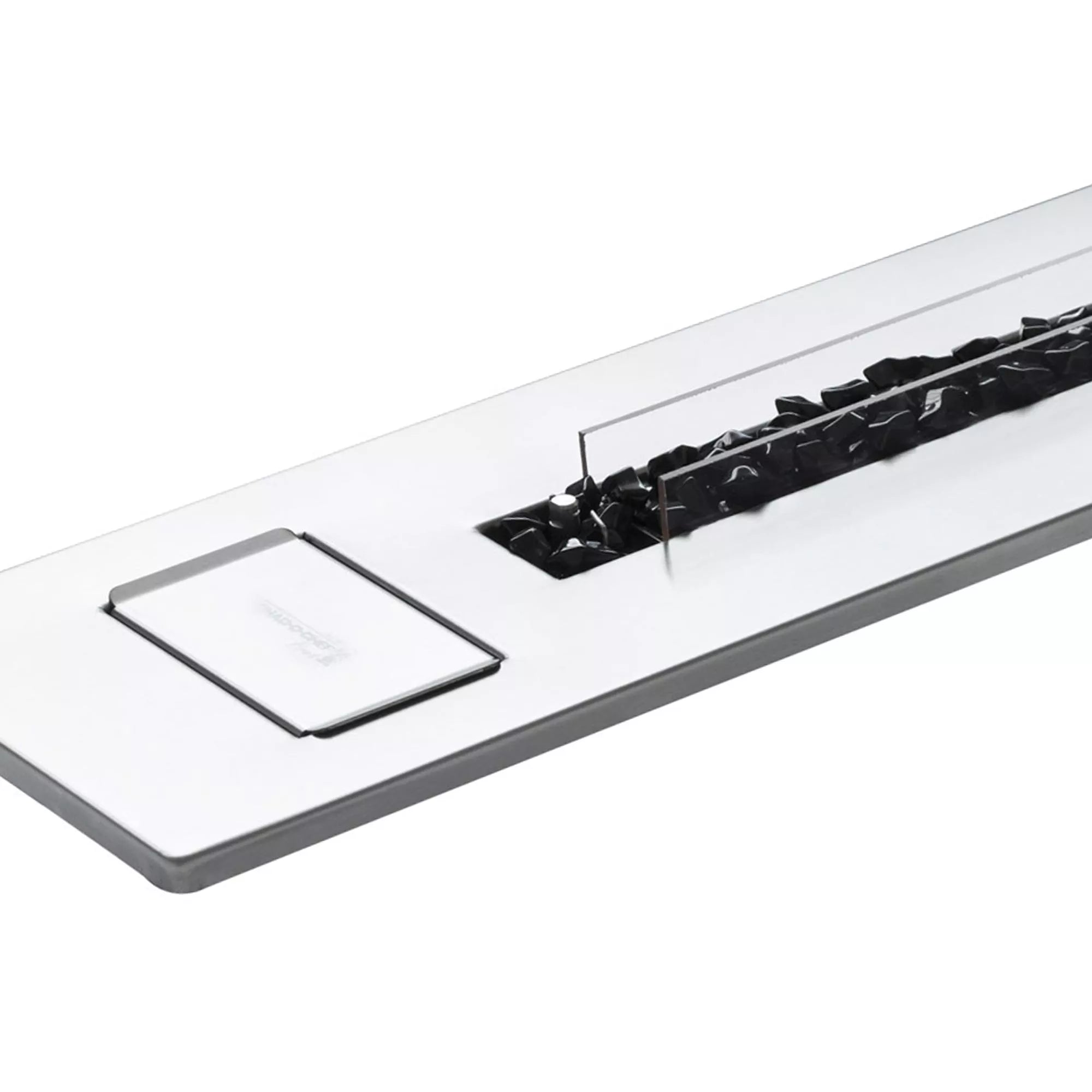

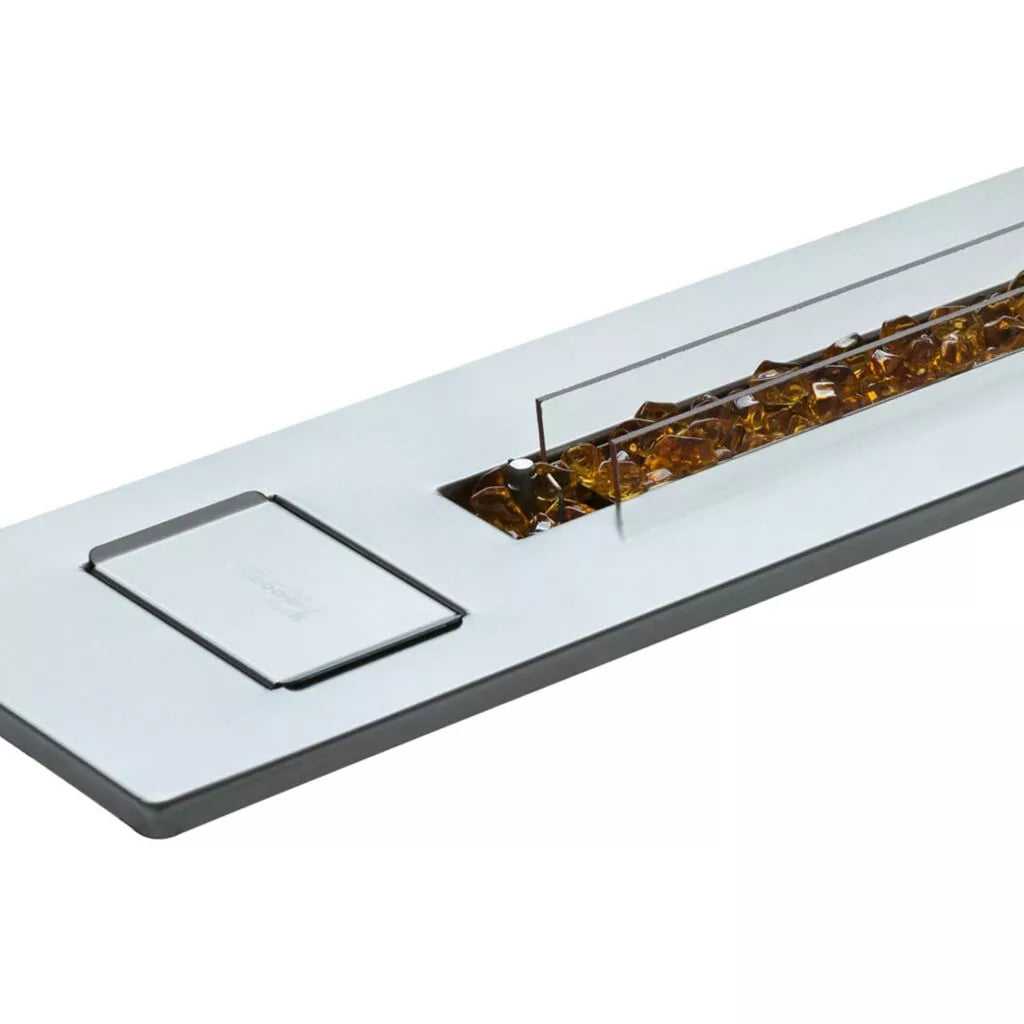

• Frame: Choose between the standard brushed stainless-steel (S/S) frame or make a daring statement with a magical Midnight Mirror (M/M) flame.
• Decorative Stones: Standard stone options include diamond black fire glass; other colours available on request include aztec gold, azure blue, and crystal clear.
• Size: Available in 3 different sizes, all with different heat outputs:
  (VFSL-810: 5.7 kW), (VFSL-1210: 12kW) & (VFSL-1610: 14.7kW)

Key features of the Chad-O-Chef Flameline 1210 (VFSL1210) Fireplace:

• Sleek and minimalist design.
• Easy to install – no need for extensive building work or chimneys.
• Heats up indoor areas of up to 147m² or 489m³ (12 kW/h).
• Conservative Gas Consumption (when operating on max) is 0.88 kg/h.
• The minimum room size (without permanent ventilation) should not be less than 220m³.
• Made of high-quality stainless steel, with heat-resistant coatings.
• Safety Guaranteed with ODS Safety System
• 2 Year quality guarantee.
• Low maintenance and easy to use.
• Requires a registered gas installer for installation.
• Ignites with a Piezo Spark
• Manufactured in a world-class factory, with ISO9001

Installation Instructions

The cut-out made in the structure surface needs to be made of a non-combustible material (e.g. cement), with the appropriate amount of cross-flowing ventilation available into the box housing the Drop-In Fireplace, as depicted below:

Note:
– Rooms smaller than the ‘Min. Room size’ requires suitable permanent ventilation.
– ‘Max. Room sizes’ are recommended and may vary according to factors such as home insulation, materials, climate, and so forth.

What’s in the box?

• Fireplace
• Burner
• Decorative Stones
• Instruction Manual
