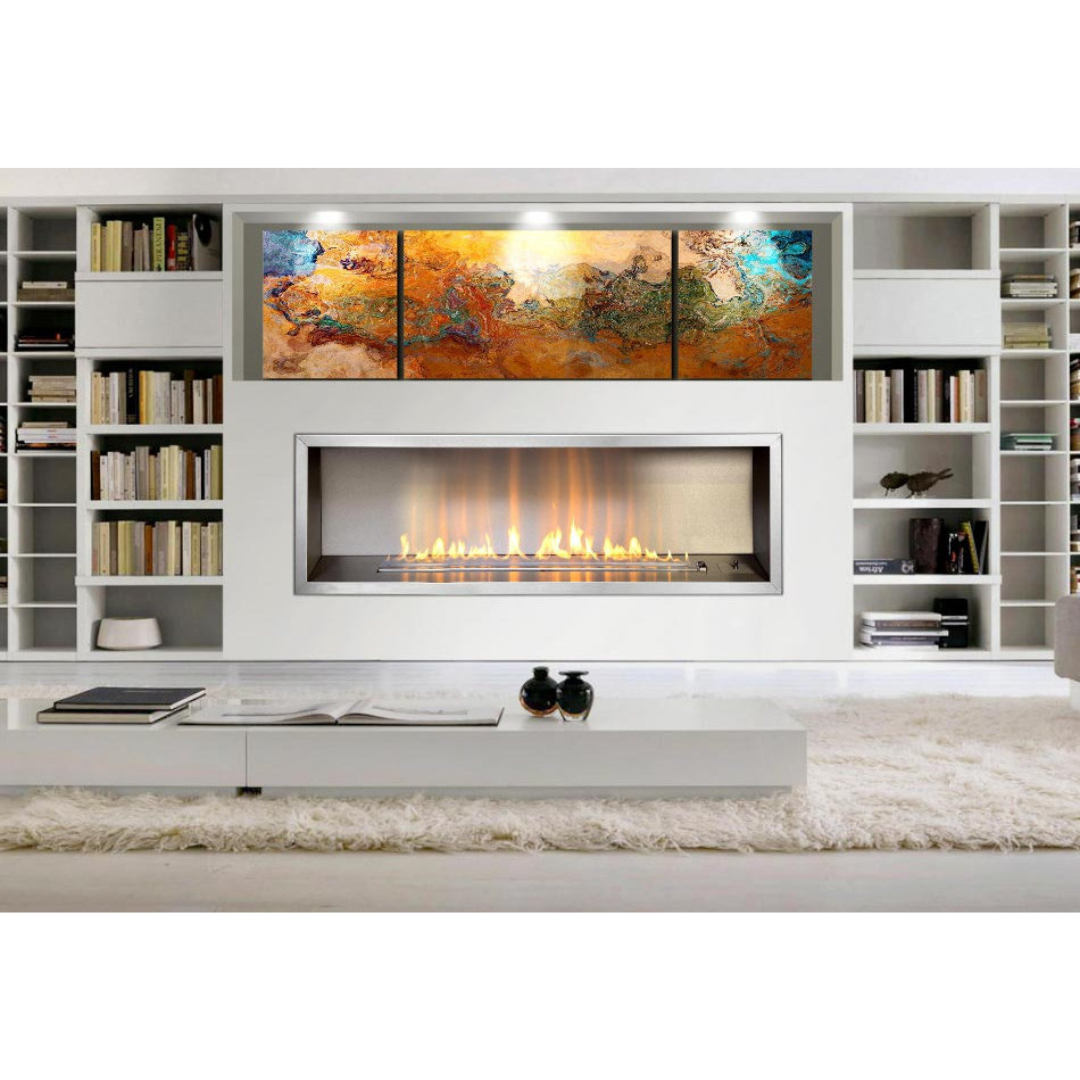

INFINITI SLIMLINE 2000 | SINGLE SIDED

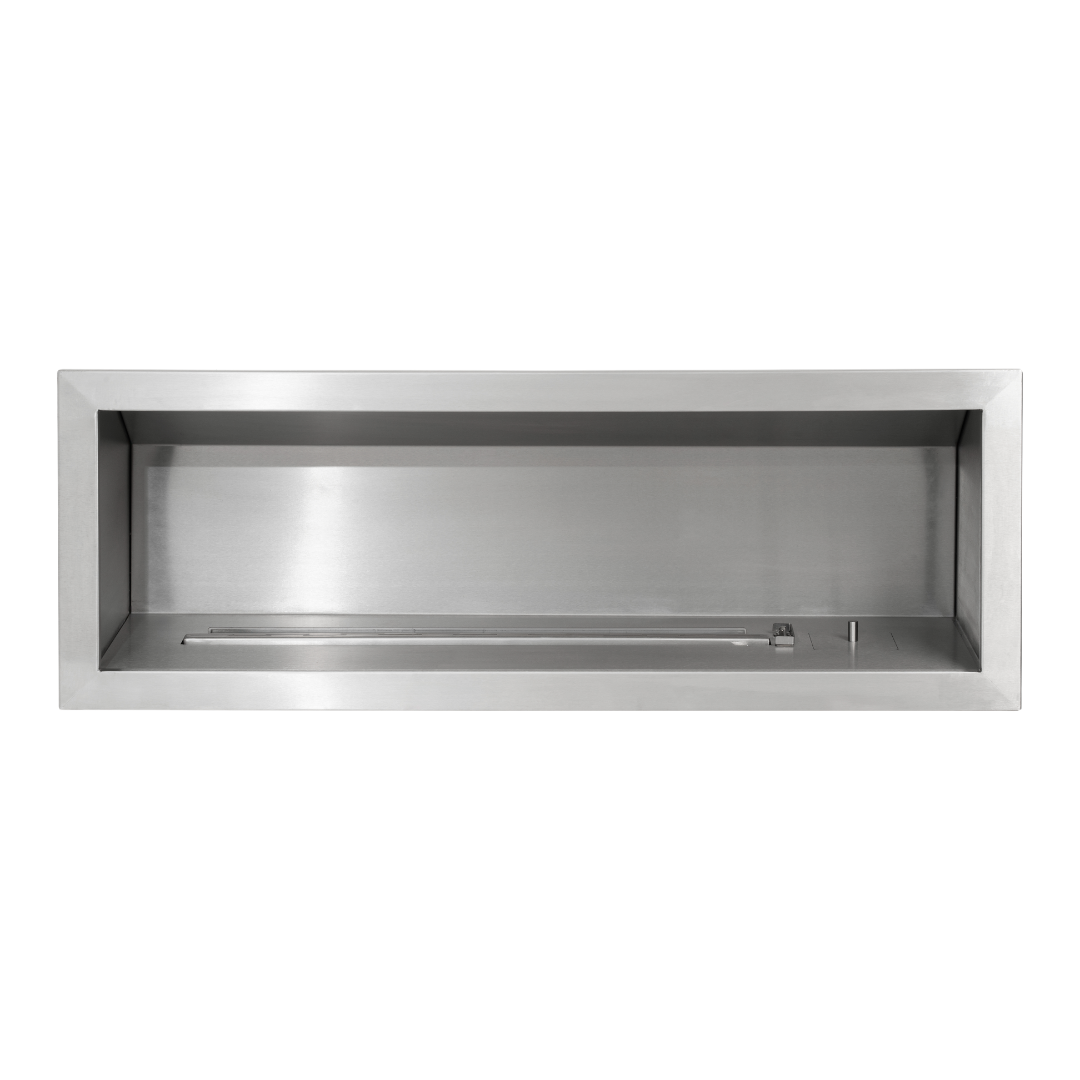

These units have a firebox made out of either 304 stainless steel or mild steel painted black. The firebox is designed to be built into a brick or other non-combustible structure, with allowance for combustion air to be brought in under the firebox from any of the side walls.

This combustion air can be brought in through a louvre, a shadow line step with an opening in it, or ducted under the floor from another room.

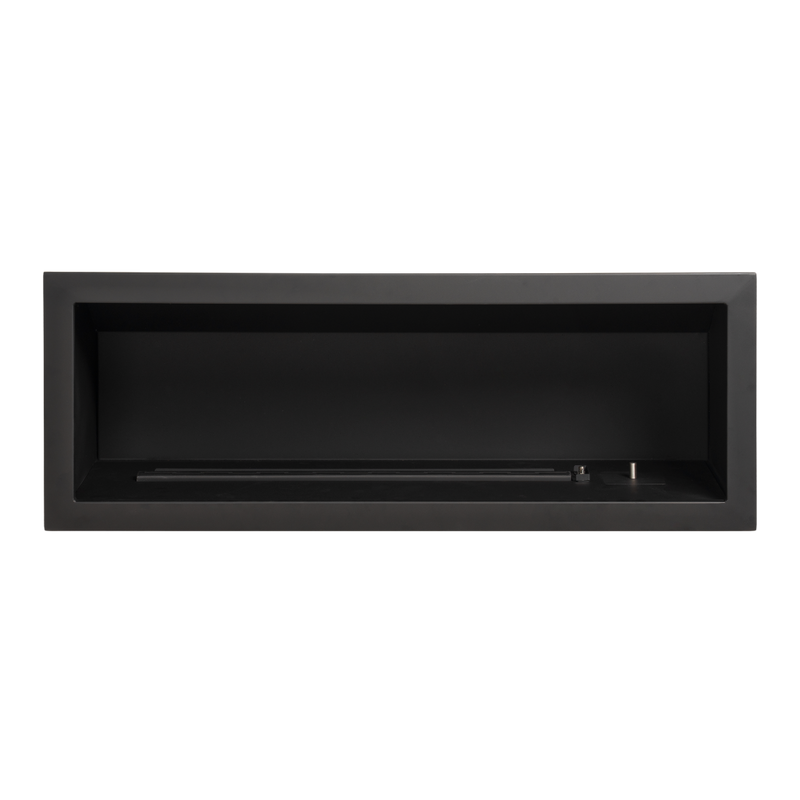

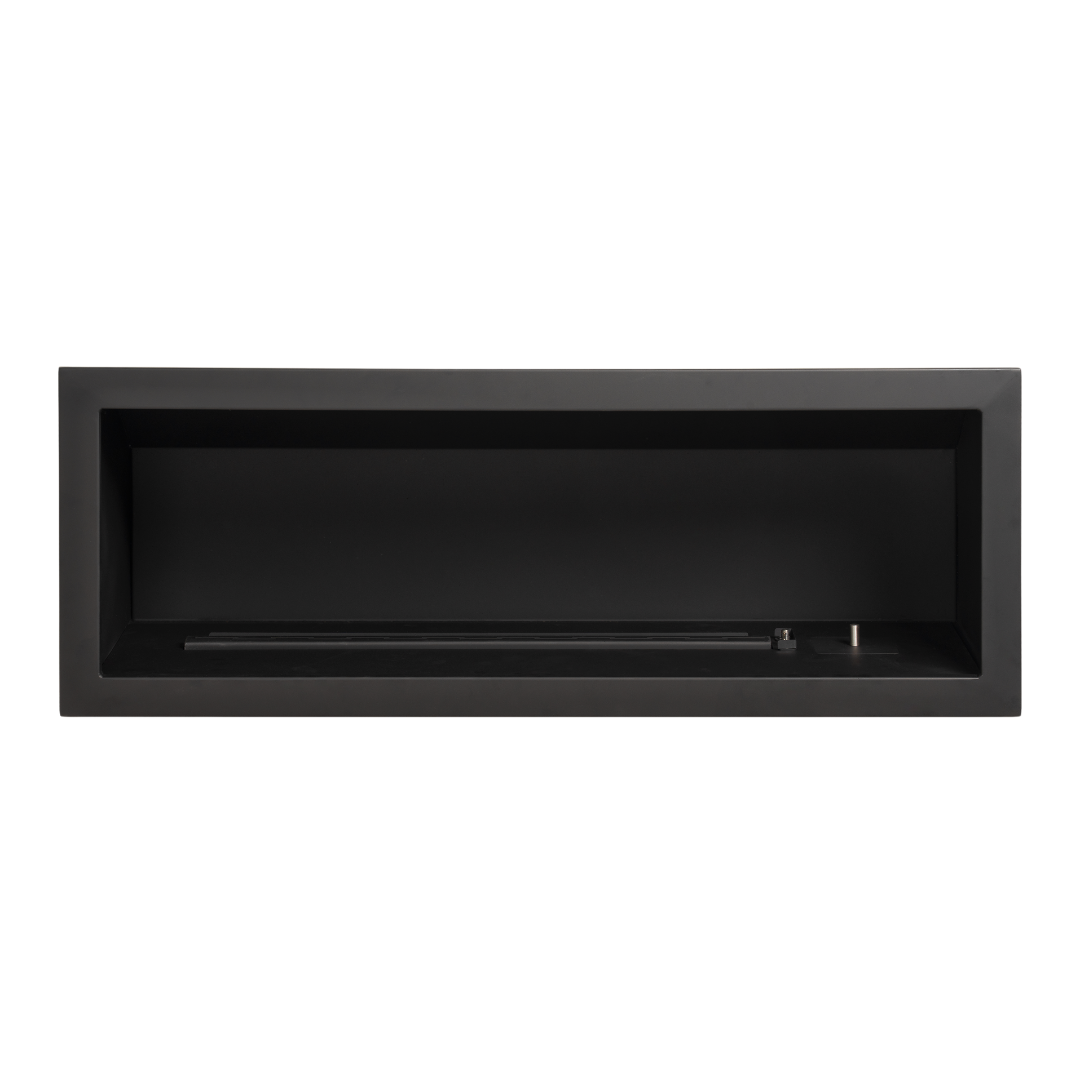

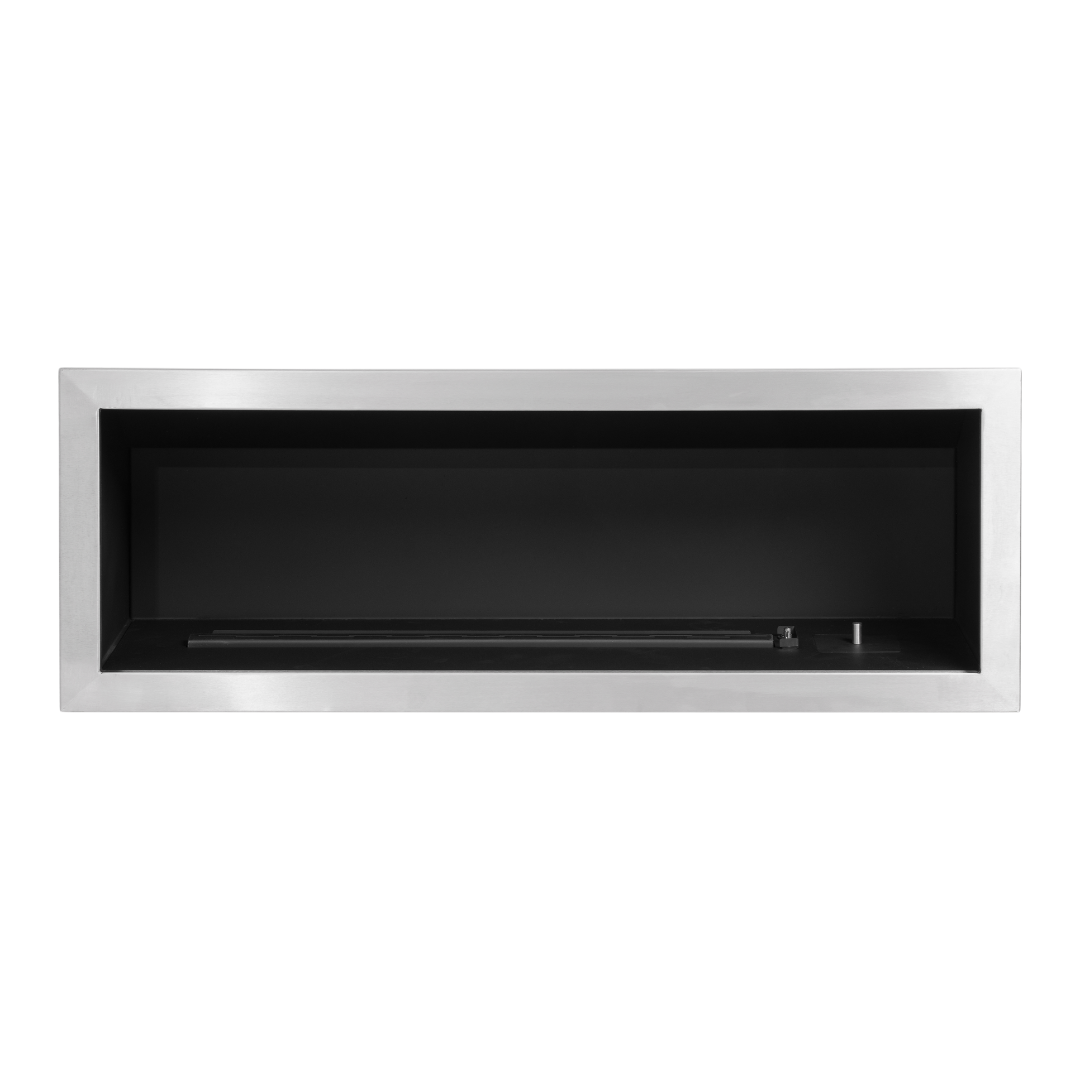

Inside the firebox is a Drop In Grate, with control valve for easy lighting and flame adjustment. The unit, if taken with a frame in stainless steel or black steel, can be finished off very simply with this slim frame as an edging, creating a very sleek look.

If the unit is taken without a frame, it can be built in behind a customised frame of heat resistant material such as granite, giving the home owner extensive choices in the final look.
